SANDEEP FULLY
AUTOMATIC FINGER JOINTING LINE |
|

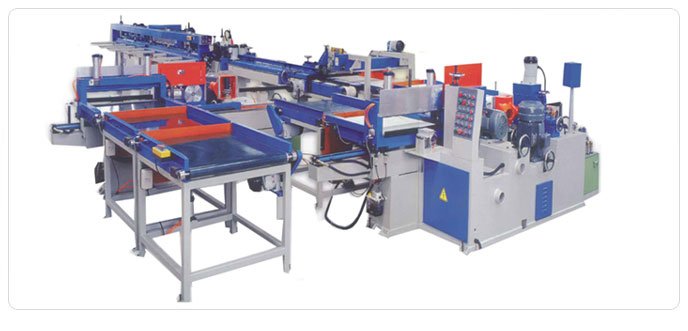

AUTOMATIC FINGER
SHAPER PLC CONTROLED HAVING THE FOLLOWING FUNCTIONS |
|
1. Bottom Scoring Saw |
|
2. Conveyor |
|
3. Cut-Off-Saw |
|
4. Spindle Shaper |
|
|
|
TECHNICAL
SPECIFICATIONS: |
|
- Working Table Width |
: |
610mm (800 Option) |
|
- Working Length |
: |
150-900mm |
|
- Working Thickness |
: |
18-150mm |
|
- Speed of Cut-Off Saw |
: |
2900 RPM |
|
- Speed of Scoring Saw |
: |
2840 RPM |
|
- Speed of Finger Cutter |
: |
6750 RPM / Min |
|
- Spindle Shaper Motor |
: |
25 HP |
|
- Cut Off Saw Motor |
: |
7.5 HP |
|
- Hydraulic Motor |
: |
5 HP |
|
- Scoring Saw Motor |
: |
2 HP |
|
- Conveyor Motor |
: |
½ HP |
|
- Chop Outlet hood (Diameter) |
: |
100mm x 4 |
|
- Machine Size (L x W x H) |
: |
3200 x 1700 x 1400mm |
|
- Net / Gross Weight |
: |
2500 / 2800 KGS |
|
|
|
|
|
AUTOMATIC FINGER
SHAPER HAVING THE FOLLOWING FUNCTIONS |
|
1. Top & Bottom Scoring Saw |
|
2. Conveyor |
|
3. Cut-Off-Saw |
|
4. Spindle Shaper |
|
5. Auto Gluing |
|
|
|
TECHNICAL
SPECIFICATIONS: |
|
|
|
- Working Table Width |
: |
610mm (800 Option) |
|
- Working Length |
: |
150-900mm |
|
- Working Thickness |
: |
18-150mm |
|
- Speed of Cut-Off Saw |
: |
2900 RPM |
|
- Speed of Scoring Saw |
: |
2840 RPM |
|
- Speed of Finger Cutter |
: |
6750 RPM / Min |
|
- Spindle Shaper Motor |
: |
25 HP |
|
- Cut Off Saw Motor |
: |
7.5 HP |
|
- Hydraulic Motor |
: |
5 HP |
|
- Scoring Saw Motor |
: |
2 HP x 2 Pcs |
|
- Conveyor Motor |
: |
½ HP |
|
- Chop Outlet hood (Diameter) |
: |
100mm x 4 |
|
- Machine Size (L x W x H) |
: |
3800 x 1700 x 1500mm |
|
- Net / Gross Weight |
: |
3000 / 3200 KGS |
|
|
|
|
|
AUTOMATIC FINGER JOINT
ASSEMBLER HAVING THE FOLLOWING FUNCTIONS |
|
1. Double Steps with Feeding Belt and
Pressure Wheel 2 Pcs |
|
|
|
|
TECHNICAL
SPECIFICATIONS: |
|
|
|
- Working Length |
: |
6000mm (6200 / 4600mm Option) |
|
- Working Width |
: |
22-150mm |
|
- Working Thickness |
: |
18-75mm |
|
- Working Speed |
: |
8-80 m/min |
|
- Speed of Cut Off Saw |
: |
2840 RPM |
|
- Maximum Squeezing Force |
: |
6 Kg/m2 |
|
- Maximum Hydraulic Pressure |
: |
70 Kg/m2 |
|
- Cut off Saw Motor |
: |
3 HP |
|
- Hydraulic Pump |
: |
5 HP |
|
- Feeding Motor |
: |
1 HP |
|
- Machine Size (L x W x H) |
: |
10800 x 1000 x 1700mm |
|
- Net / Gross weight |
: |
3000 / 5000 Kgs |
|
|
|
|
