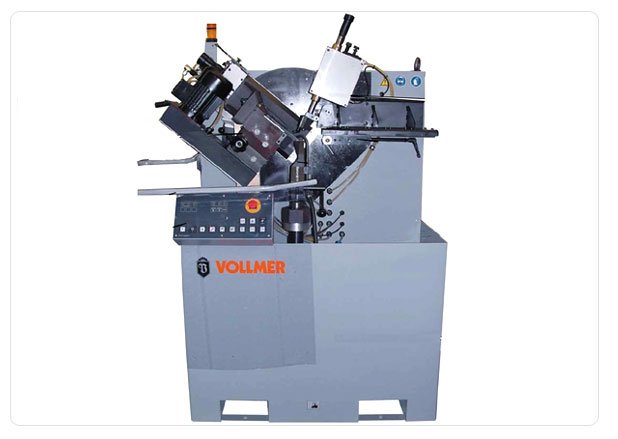

VOLLMER SHARPENING MACHINE

MODEL CHU

SALIENT FEATURES:

* Sturdy Sharpening unit for high production rates and good sharpening quality.
* Sturdy feed mechanism.
* Simple Operation.
* Optimised setup procedure
* Proven VOLLMER quality.
* Simple loading and unloading of machine.
* Magnetic clamping flange optionally available for centring
Circular saw blades.
* Compact size.

TECHNICAL SPECIFICATIONS:

* Circular Saw Blades
Outer Diameter	:	from 80 to 650mm
Bore Diameter	:	from 10 to 110mm
Blade Thickness	:	up to 5mm
Tooth Pitch	:	from 8 to 75mm
(with alternating top bevel)	:	up to max. 35mm
Hook angle	:	from -20° to +40°
Clearance Angle	:	from 0° to 45°

* Bevel grinding
Tooth top (bevel angle / chamfer
angle)	:	up to 45°
Tooth face (shear angle)	:	up to 15°

* Grinding path (carbide length)	:	max. 16mm
* Working speed	:	up to 12 teeth/min
* Grinding wheel
Outer diameter	:	125mm
Bore diameter	:	32mm
Peripheral speed	:	up to 27 m/s
* Hydraulic pressure	:	20 bar
* Coolant
Coolant pump delivery rate	:	40 I/min
Coolant tank capacity	:	Approx. 80 I
* Connected load	:	1.8 KVA / 1.4 KW
* Net Weight	:	510 KG
